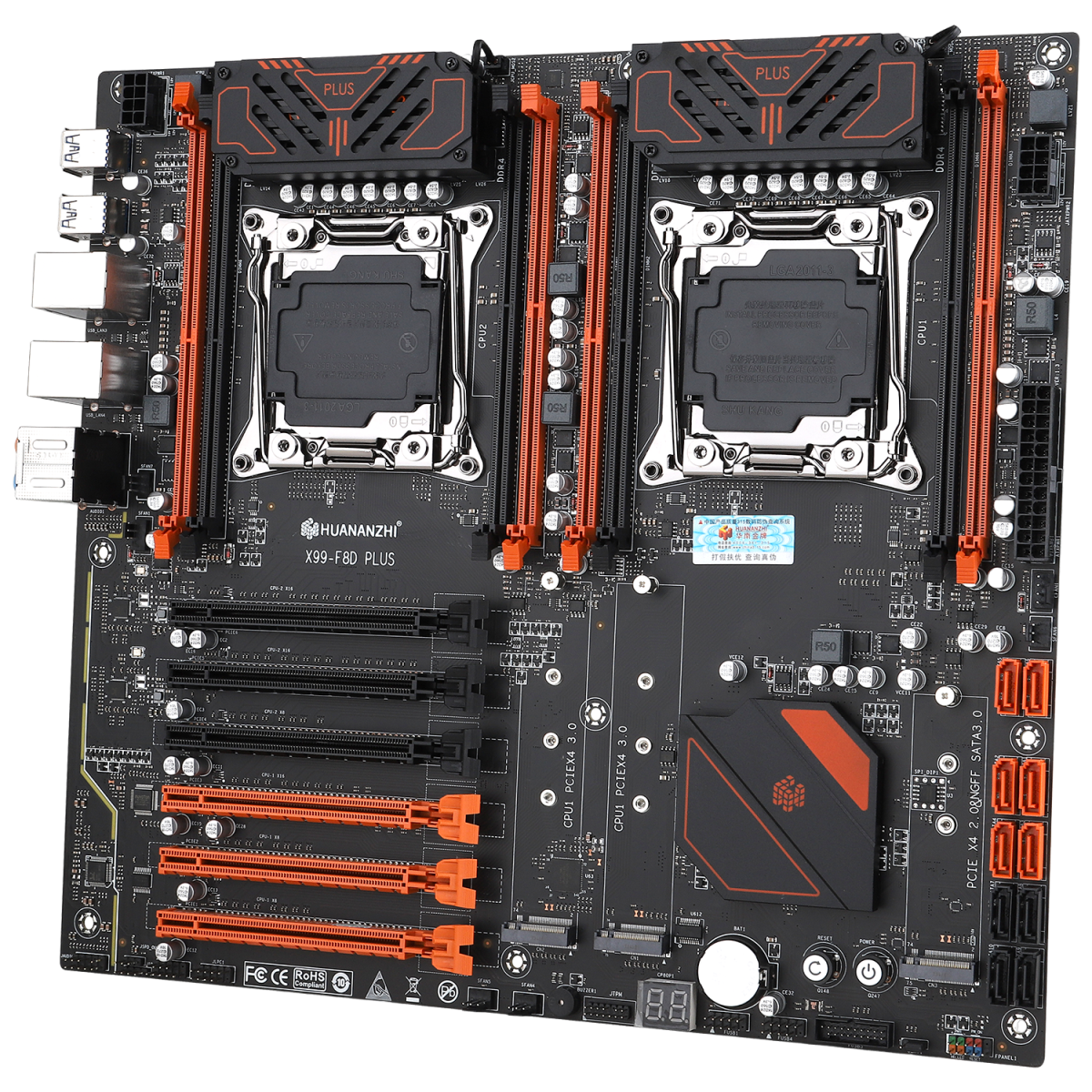

CPU Compatibility: Supports Intel LGA2011-3 platform processors
CPU Socket: Intel LGA2011-3 pin
Chipset: C612
Memory Channels: Single processor quad-channel
Number of Memory Slots: 8*DDR4, DDR4 2400/2133/1866MHz memory
Maximum Memory (GB): 64GB*8 (depending on CPU; larger memory capacity corresponds to lower frequency)
M.2 Interfaces: 2 M.2 22110 NVME PCIe X4 3.0, 1 M.2 2280 NVME PCIe X4 2.0 & NGFF SSATA3.0 Gbps (one SSATA signal will be used during use)
Storage Interfaces: 6 SATA3.0 6Gbps interfaces, 4 SSATA3.0 6Gbps interfaces
Expansion Slots: 3 PCI Express 3.0 x16 slot, 3 PCI Express 3.0 x8 slots
Onboard audio card: 7.1 channel
Onboard network card: Dual 2.5G network cards RTL8125BG
Power connector: 24pin + 8pin + 8pin
Fan connector: 2 CPU_FAN headers, 4 SYS_FAN headers
PCB layers: 8+8 phase power supply, 12-layer PCB
Motherboard size: 305*330MM E-ATX form factor
Rear panel I/O: 4 USB 2.0 ports, 4 USB 3.0 ports 2 network ports, 1 6-pin audio jack
Front panel interface: 2 USB 2.0 headers, 1 USB 3.0 header, 1 front audio header, 1 COM header, 1 power-on header, 1 14-pin TPM, 1 motherboard buzzer, 1 motherboard diagnostic card, 1 power/reset button
